About Brother ADS-1500W Replacement Parts
The Brother ADS-1500W is a high-performance machine designed for demanding environments. Maintaining peak performance requires high-quality consumables and precision-engineered parts. All components listed below are verified against original OEM specifications to ensure 100% compatibility. Not sure which part number you need? Contact our technical team for a free consultation.
Paper Feed Components
1 part found

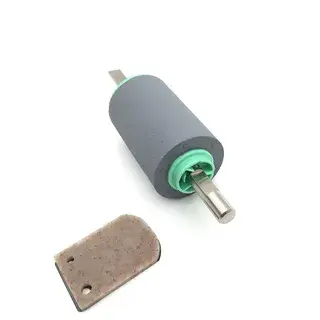

Paper Pickup Roller Separation Pad
Frequently Asked Questions — Brother ADS-1500W Parts
About the Brother ADS-1500W
The Brother ADS-1500W is a high-performance, wireless compact scanner that brings enterprise-level features to a desktop-friendly footprint. It is distinguished by its ability to scan directly to popular cloud services like Google Drive and Dropbox without requiring a computer. With faster scanning speeds and a robust 2.7-inch color touchscreen, it is designed for busy professionals who need to capture, manage, and share documents efficiently across various platforms and network locations.
Core Performance Specifications
- Scanner Type: Sheet-fed ADF, Duplex (Double-sided)
- Scanning Speed (A4/Letter): Up to 18 ppm (Simplex) / 36 ipm (Duplex)
- Optical Resolution: Up to 600 x 600 dpi
- Interpolated Resolution: Up to 1200 x 1200 dpi
- Image Sensor: Dual CIS
- Memory: 256 MB
- Daily Duty Cycle: Up to 500 scans per day
Paper Handling and Media
- ADF Capacity: 20 sheets
- Document Size:
- Maximum: 215.9 x 297 mm (8.5 x 11.7 in.)
- Minimum: 51 x 70 mm (2.0 x 2.76 in.)
- Long Paper: Up to 863 mm (34 in.)
- Plastic Card Slot: Dedicated rear slot for plastic ID cards (including embossed cards)
- Paper Weight: 51 to 209 g/m² (14 to 55 lb)
Scanning and Image Processing Features
- Direct Cloud Scanning: Scan directly from the device to Dropbox, Google Drive, OneDrive, Evernote, and more
- Advanced Network Scanning: Supports Scan-to-Network (SMB), Scan-to-FTP, and Scan-to-Email Server (LDAP)
- Touchscreen Workflow: 2.7-inch Color Touchscreen allows for "One-Touch" shortcuts for frequent scan destinations
- Image Cleanup: Auto-deskew, blank page skipping, background removal, and auto-rotation
Connectivity and Security
- Wireless Connectivity: Built-in Wi-Fi (802.11 b/g/n)
- Interface: High-speed USB 2.0 and USB Host (for flash drives)
- Mobile Support: Compatible with Brother iPrint&Scan app for iOS and Android
- Security: Secure Function Lock 3.0, Active Directory integration, and Settings Lock
Physical Dimensions
- Width: 285 mm (11.2 in.)
- Depth: 103 mm (4.1 in.)
- Height: 84 mm (3.3 in.)
- Weight: Approximately 1.6 kg (3.5 lb)
- Portability: Compact "closed" design protects the scanning glass and internal components
