About Fujitsu fi-6225 Replacement Parts
The Fujitsu fi-6225 is a high-performance machine designed for demanding environments. Maintaining peak performance requires high-quality consumables and precision-engineered parts. All components listed below are verified against original OEM specifications to ensure 100% compatibility. Not sure which part number you need? Contact our technical team for a free consultation.

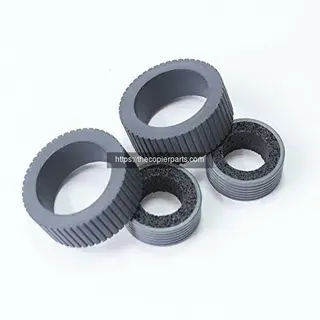

Paper Feed Components
1 part found
Frequently Asked Questions — Fujitsu fi-6225 Parts
About the Fujitsu fi-6225
The Fujitsu fi-6225 is a versatile A4 document scanner that combines a high-capacity Automatic Document Feeder (ADF) with an integrated flatbed unit. This dual-purpose design makes it ideal for workgroups that need to scan standard document batches as well as fragile, bound, or thick items such as passports and books. With reliable paper handling and high-quality CCD imaging, the fi-6225 is a robust entry-level solution for varied scanning needs.
Core Performance Specifications
- Scanner Type: ADF (Automatic Document Feeder) + Flatbed, Duplex (Double-sided)
- Scanning Speed (A4 Portrait, 200/300 dpi):
- ADF: 25 ppm / 50 ipm
- Flatbed: 1.7 seconds (200 dpi)
- Optical Resolution: 600 dpi
- Image Sensor: Color CCD x 3 (Front, Back, and Flatbed)
- Daily Duty Cycle: Up to 2,000 pages
- Multi-feed Detection: Ultrasonic sensor
Paper Handling and Media
- ADF Capacity: 50 sheets (A4, 80 g/m²)
- Document Size (ADF):
- Maximum: 216 x 355.6 mm (8.5 x 14 in.)
- Minimum: 52 x 74 mm (2 x 3 in.)
- Long Document: Up to 3,048 mm (120 in.)
- Flatbed Size: Maximum 216 x 297 mm (8.5 x 11.69 in.)
- Paper Weight: 41 to 210 g/m² (11 to 56 lb)
- Card Scanning: Supports embossed plastic cards through the ADF
Scanning and Image Processing Features
- Integrated Flatbed: Allows for the scanning of delicate originals or bound materials that cannot be fed through the ADF
- Image Processing: Automatic color detection, blank page removal, and auto-deskew
- Drivers: Full TWAIN and ISIS support for integration with third-party software
- Software Bundle: Includes ScandAll PRO for efficient job management and PDF creation
Connectivity and Security
- Interface: High-speed USB 2.0
- Energy Management: Compliant with Energy Star standards for reduced environmental impact
- Administrative Tools: Compatible with Fujitsu's scanner administration software for monitoring and maintenance
Physical Dimensions
- Width: 301 mm (11.8 in.)
- Depth: 567 mm (22.3 in.)
- Height: 229 mm (9.0 in.)
- Weight: Approximately 8.8 kg (19.4 lb)
- Power Consumption:
- Operating: 45W or less
- Sleep Mode: 6.0W or less
