About HP LaserJet 5200tn Replacement Parts
The HP LaserJet 5200tn is a high-performance machine designed for demanding environments. Maintaining peak performance requires high-quality consumables and precision-engineered parts. All components listed below are verified against original OEM specifications to ensure 100% compatibility. Not sure which part number you need? Contact our technical team for a free consultation.
Paper Feed Components
1 part found

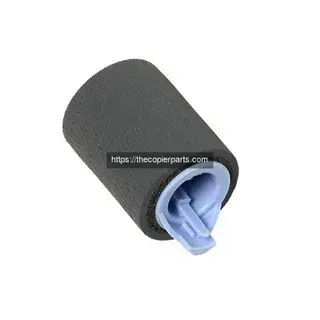

Paper Feed Roller
Frequently Asked Questions — HP LaserJet 5200tn Parts
About the HP LaserJet 5200tn
The HP LaserJet 5200tn is an expanded wide-format monochrome laser printer designed for workgroups that demand high-capacity paper handling and seamless network integration. The "tn" model includes an additional 500-sheet input tray for a total capacity of 850 sheets, along with standard Gigabit networking. This configuration minimizes the need for frequent paper refills while providing the high-speed A3 output essential for professional technical and business environments.
Core Performance Specifications
- Print Speed: Up to 35 ppm (A4/Letter) and up to 18.5 ppm (A3).
- Resolution: 1200 x 1200 dpi (HP ProRes 1200) for professional clarity on large media.
- Monthly Duty Cycle: Up to 65,000 pages per month.
- First Page Out: Less than 10 seconds from "Ready" mode.
- Processor: 460 MHz with 64 MB standard memory (expandable up to 512 MB).
Paper Handling and Media
- Standard Paper Capacity: 850 sheets (100-sheet multipurpose tray, 250-sheet tray, and one 500-sheet tray).
- Maximum Paper Capacity: 850 sheets (pre-configured to its standard maximum).
- Media Sizes: Supports media up to A3+ (12.28 x 18.5 inches).
- Media Types: Plain paper, bond, letterhead, prepunched, recycled, rough, cardstock, envelopes, labels, and transparencies.
- Duplexing: Manual (automatic duplexing available via optional duplex accessory).
Scanning and Copying Features
- Note: This model is a dedicated wide-format printer and does not include integrated scanning or copying functions.
Connectivity and Security
- Connectivity: Standard HP Jetdirect Gigabit Ethernet Embedded Print Server, Hi-Speed USB 2.0, and IEEE 1284-B parallel port.
- Expansion: One open EIO slot and two CompactFlash slots.
- Printer Languages: HP PCL 6, HP PCL 5e, and HP Postscript Level 3 emulation.
- Security: Standard network authentication and support for secure management through HP Web Jetadmin.
Physical Dimensions:
- Base Dimensions: 19.3" W x 23.6" D x 15.9" H (490 x 600 x 405 mm).
- Weight: Approximately 66.5 lbs (30.2 kg).
