About OCE Plotwave 400 Replacement Parts
The OCE Plotwave 400 is a high-performance machine designed for demanding environments. Maintaining peak performance requires high-quality consumables and precision-engineered parts. All components listed below are verified against original OEM specifications to ensure 100% compatibility. Not sure which part number you need? Contact our technical team for a free consultation.
OPC Drums
2 parts found

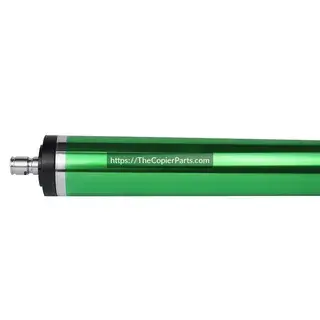

OPC Drum with Cleaning Blade
Estimated Yields: 60,000 meters.

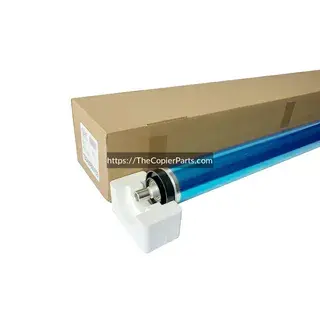

OPC Drum with Cleaning Blade
OPC Drum with Drum Cleaning Blade, Estimated Yields 40,000 meters.
Frequently Asked Questions — OCE Plotwave 400 Parts
About the OCE Plotwave 400
The Océ PlotWave 400 is a modern, high-performance monochrome wide format multifunction printer designed for architectural, engineering, and construction (AEC) workgroups requiring rapid throughput and professional-grade digital integration. featuring Océ's proprietary "Radiant Fusing" technology, it offers instant-on productivity with zero warm-up time and exceptionally low energy consumption. delivering a rapid 8 'D' size (24" x 36") prints per minute, it features the Océ ClearConnect multi-touch interface—a smartphone-like 10.4-inch tablet that supports intuitive gestures and seamless cloud integration. The PlotWave 400 is distinguished by its Pico Printing technology, which provides high-resolution 600 x 1200 dpi imaging for stunningly crisp text and fine-line detail. With its standard 2-roll media capacity and integrated top delivery tray, it serves as a sophisticated workplace hub that effectively streamlines the entire technical document lifecycle with unmatched speed and surgical precision.
Core Performance Specifications
- Device Type: Modern Wide Format MFP (Print, Copy, Scan Standard)
- Print Speed:
- 8 ppm (D-size / A1)
- 4 ppm (E-size / A0)
- Print Resolution: 600 x 1200 dpi (Pico Printing for sharp lines)
- Warm-up Time: Instant-on (utilizing Radiant Fusing technology)
- Monthly Duty Cycle: Up to 40,000 linear feet
- Memory/Storage: 4 GB RAM Standard / 500 GB HDD Standard
Paper Handling and Media
- Standard Media Capacity: 2 Rolls (Integrated automatic switching)
- Maximum Media Capacity: Up to 4 Rolls (with optional 2nd drawer module)
- Media Width: 11" up to 36" (914 mm)
- Roll Length: Up to 200 meters (approx. 650 feet)
- Media Types: Bond, Vellum, Film, and Fluorescent media
- Output Tray: standard integrated 100-sheet top delivery tray with air separation
Scanning and Smart Features
- Scan Technology: standard high-speed Color Scanning with Océ Image Logic
- Scan Speed: Up to 14.6 meters per minute (B&W) / 4.8 meters per minute (Color)
- User Interface: 10.4-inch ClearConnect Color Multi-touch Tablet
- Cloud Integration: Standard support for Google Drive, Dropbox, Box, and OneDrive
- Smart Features: Always Current Technology (ACT) for cloud firmware updates
Connectivity and Security
- Network Interface: Ethernet 10/100/1000 Base-T, High-speed USB 2.0
- Printer Emulations: Standard Adobe PostScript 3, PCL 6, HP-GL/2, TIFF, PDF
- Security: Standard SMARTshield disk encryption and secure data shredding
- Management Tools: Compatible with Océ Publisher Mobile and professional RIPs
Physical Dimensions
- Width: 1,527 mm (60.1 in.)
- Depth: 800 mm (31.5 in.)
- Height: 1,495 mm (58.9 in.) (Main Body)
- Weight: Approximately 240 kg (529 lb)
- Sustainability: Energy Star certified; designed for silent production operation
