About Ricoh Aficio MP 9002 Replacement Parts
The Ricoh Aficio MP 9002 is a high-performance machine designed for demanding environments. Maintaining peak performance requires high-quality consumables and precision-engineered parts. All components listed below are verified against original OEM specifications to ensure 100% compatibility. Not sure which part number you need? Contact our technical team for a free consultation.
Paper Feed Components
1 part found
Paper Pickup Roller Kit
Fuser Rollers
3 parts found

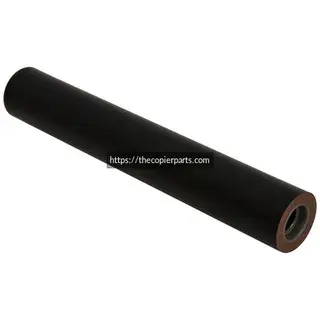

Upper Fuser Roller
Lower Pressure Roller
Web Pressure Roller
Charging Components
1 part found
Charge Corona Grid
Cleaning Blades
2 parts found
Drum Cleaning Blade
Transfer Belt Cleaning Blade
Frequently Asked Questions — Ricoh Aficio MP 9002 Parts
About the Ricoh Aficio MP 9002
The Ricoh Aficio MP 9002 is a high-speed monochrome digital imaging system designed for maximum productivity in the most demanding office and central reprographic environments. Delivering an impressive 90 copies per minute, it combines industrial-strength reliability with advanced digital features. This base configuration provides a powerful platform for massive document reproduction with the ability to scale up to full multifunctionality.
Core Performance Specifications
- Copy Speed: 90 copies per minute (cpm).
- Resolution: 600 x 600 dpi (Copy/Scan); Up to 1200 x 1200 dpi (Print).
- First Copy Out Time: 2.9 seconds.
- Warm-Up Time: 300 seconds.
- Monthly Duty Cycle: Up to 300,000 pages per month.
- System Memory: 1.5 GB RAM (Standard/Max) with 250 GB HDD.
Paper Handling and Media
- Standard Paper Capacity: 4,300 sheets (3,100-sheet Tandem Tray, two 550-sheet trays, and 100-sheet bypass).
- Maximum Paper Capacity: 8,300 sheets with optional 4,000-sheet Large Capacity Tray (LCT).
- Media Sizes: 5.5" x 8.5" to 11" x 17".
- Media Weights: 14 lb. Bond – 45 lb. Bond (Trays 1-2); up to 80 lb. Cover (Tray 3).
- Auto-Duplexing: Standard One-Pass Duplex Scanning Document Feeder for high-speed two-sided output.
Scanning and Copying Features
- Copying Capabilities: Advanced digital copying via a tilting 9-inch full-color LCD touch panel.
- Document Feeder: 150-sheet One-Pass Duplex Scanning Document Feeder.
- Scanning Speed: 88 ipm (Simplex) / 178 ipm (Duplex) in both B&W and Color.
- Advanced Finishing: Options include production-grade multi-folding units, hole punching, and saddle-stitching.
Connectivity and Security
- Power Requirements: 208–220V/60Hz/20A (Requires dedicated outlet).
- Security Features: Standard DataOverwriteSecurity System (DOSS) and HDD Encryption (AES256bit).
- Connectivity: Standard Ethernet and USB 2.0 (available with Print/Scan option).
- Data Protection: Unauthorized Copy Control and secure user authentication protocols.
Physical Dimensions:
- Base Dimensions: 27.2" W x 31.1" D x 45.9" H (690 x 790 x 1,165 mm).
- Weight: Approximately 471.8 lbs (214 kg).
