About Ricoh Pro 1106EX Replacement Parts
The Ricoh Pro 1106EX is a high-performance machine designed for demanding environments. Maintaining peak performance requires high-quality consumables and precision-engineered parts. All components listed below are verified against original OEM specifications to ensure 100% compatibility. Not sure which part number you need? Contact our technical team for a free consultation.
Fuser Cleaning Webs
1 part found
Cleaning Web Roller
Fuser Rollers
4 parts found

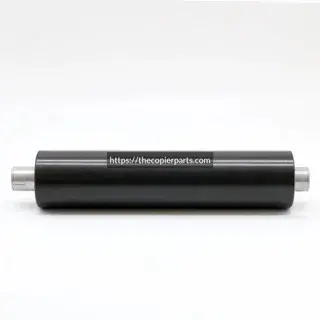

Upper Fuser Roller
Upper Fuser Roller
Lower Fuser Pressure Roller
Lower Fuser Pressure Roller
Cleaning Blades
1 part found
Drum Cleaning Blade
Charging Components
2 parts found
Charge Corona Grid
Pre Charge Corona Grid
OPC Drums
2 parts found
OPC Drum
This drum offers a high page yield of up to 1,500,000 pages (based on ISO/IEC 19752 standard with A4 paper at 5% coverage). Get a long lifespan from your drum unit and ensure consistent, high-quality prints. Looking for the printer drum life expectancy? The Drum is designed for extended use, minimizing downtime and maximizing your printer's performance.
OPC Drum
This drum offers a high page yield of up to 2,400,000 pages (based on ISO/IEC 19752 standard with A4 paper at 5% coverage). Get a long lifespan from your drum unit and ensure consistent, high-quality prints. Looking for the printer drum life expectancy? The Drum is designed for extended use, minimizing downtime and maximizing your printer's performance.
General Mechanical Gears
1 part found
Powder Rack Gear Hook
Frequently Asked Questions — Ricoh Pro 1106EX Parts
About the Ricoh Pro 1106EX
The Ricoh Pro 1106EX is a high-speed monochrome digital production system designed to deliver superior reliability and versatility in print-on-demand and centralized reproduction environments. Delivering 110 pages per minute, it is engineered for heavy-duty performance with a duty cycle of 1.5 million impressions per month. The Pro 1106EX features a 1200 dpi dual-laser engine and an expansive array of professional finishing options, including ring binding, perfect binding, and multi-folding, making it a comprehensive solution for producing high-quality manuals, reports, and marketing materials.
Core Performance Specifications
- Device Type: High-Volume Monochrome Production MFP (Print, Copy, Scan)
- Print/Copy Speed: 110 ppm (A4/Letter)
- Resolution: 1200 x 1200 dpi (Output)
- First Copy Out Time: As fast as 3.2 seconds
- Monthly Volume: Up to 1,000,000 pages
- Duty Cycle: Up to 1,500,000 impressions
- Warm-up Time: Less than 360 seconds
- Storage/Memory: 256 MB RAM / Dual 160 GB HDDs (320 GB total)
Paper Handling and Media
- Standard Paper Capacity: 3,000 sheets (2 x 1,000-sheet tandem trays + 2 x 500-sheet trays)
- Maximum Paper Capacity: Up to 8,050 sheets with optional Large Capacity Trays (LCT)
- Media Sizes: 5.5" x 8.5" to 13" x 18" (Maximum 330 x 458 mm)
- Paper Weight: 14 lb. Bond to 80 lb. Cover (52 to 216 g/m²)
- Toner System: Holds two toner bottles for "on-the-fly" replacement, ensuring zero downtime during long print runs
Scanning and Copying Features
- Scan Speed: 80 ipm (Images Per Minute) for both B&W and Color
- Scan Resolution: Up to 600 dpi
- File Formats: Single/Multi-Page TIFF, PDF, High Compression PDF, and JPEG
- Advanced Finishing: Supports SR5000 Finisher (3,000-sheet capacity), GBC StreamPunch III, and Z-folding Unit
Connectivity and Security
- Technology: 2 x 4-way laser diode array for precise monochrome imaging
- Interface: Ethernet 10/100/1000 Base-T, High-speed USB 2.0
- Power Requirements: 208V – 240V, 50/60Hz, 20A (Dedicated outlet)
- Energy Efficiency: Designed with energy-saving modes for high-volume operation
Physical Dimensions
- Width: 870 mm (34.3 in.)
- Depth: 860 mm (33.9 in.)
- Height: 1,476 mm (58.2 in.)
- Weight: Approximately 305 kg (672.4 lb) (Main unit only)
- Serviceability: Features a robust industrial chassis designed for high-uptime environments
