About Xerox Color 560 Replacement Parts
The Xerox Color 560 is a high-performance machine designed for demanding environments. Maintaining peak performance requires high-quality consumables and precision-engineered parts. All components listed below are verified against original OEM specifications to ensure 100% compatibility. Not sure which part number you need? Contact our technical team for a free consultation.
Charging Components
3 parts found
Charge Roller (PCR)
For rebuilding 013R00603, 013R00656, 013R00664, 013R00672
Charge Corotron Assembly Unit
Charge Corotron Grid
Repairs: 013R00650, 013R00604, 013R00630, 013R00631, 013R00632, 013R00633, 013R00634, 013R00635, 013R00636, 013R00637
Cleaning Blades
8 parts found
Black Drum Cleaning Blade
For Rebuilding: 013R00602, 013R00631, 013R00642, 013R00655, 013R00663, 013R00671. Original Quality
IBT Cleaning Blade
Original Quality
Color Drum Cleaning Blade
Repairs: 013R00603, 013R00632, 013R00649, 013R00643, 013R00643, 013R00656, 013R00664, 013R00672
2nd BTR Cleaning Blade
IBT Cleaning Blade
Black Drum Cleaning Blade
For Rebuilding: 013R00602, 013R00631, 013R00642, 013R00655, 013R00663, 013R00671. Original Quality
Color Drum Cleaning Blade
Repairs: 013R00603, 013R00632, 013R00649, 013R00643, 013R00643, 013R00656, 013R00664, 013R00672
2nd BTR Cleaning Blade
Toner Cartridges
5 parts foundToner Cartridge
Toner Cartridge Color
450g Original Toner Refilled
Toner Cartridge Black
600g Original Toner Refilled
Toner Cartridge Color
Toner Powder: 450g
Toner Cartridge Black
Toner Powder: 600g
Paper Feed Components
5 parts found
Paper Feed Roller Kit
Set of 3 Rollers
Tray 5 Feed Nudger and Retard Roll Kit, Paper Feed Repair Kit trays 1-3
Bypass (Tray 5) Feed Idler Gear (25T)
Replace 007E78180
Paper Feed Roller Kit
Set of 3 Rollers
Pickup Roller Shaft Unit
Developer Parts & Gears
10 parts found
Developer Gear Kit
Fits all of the following: Black DV Units - 604K24210, 604K24214, 604K24215, 604K24216, 604K24217, 604K24218, 604K24219, 604K50040, 604K50041, 604K50042, 604K50043, 604K75870, 604K85120, 604K86360, 604K86560 Color DV Units - 604K24220, 604K24224, 604K24225, 604K24226, 604K24227, 604K24228, 604K24229, 604K50030, 604K50031, 604K50032, 604K50033, 604K86350, 604K86550
Recovery Blade Seal Tape for Developer Unit
Cover for Developer Unit BK
Cover for Developer Unit Colors
Metal Developer Gear Kit
Copper Alloy Version, Lifespan longer than the original kit. Fits all of the following: Black DV Units - 604K24210, 604K24214, 604K24215, 604K24216, 604K24217, 604K24218, 604K24219, 604K50040, 604K50041, 604K50042, 604K50043, 604K75870, 604K85120, 604K86360, 604K86560 Color DV Units - 604K24220, 604K24224, 604K24225, 604K24226, 604K24227, 604K24228, 604K24229, 604K50030, 604K50031, 604K50032, 604K50033, 604K86350, 604K86550
Magnetic Developer Roller
Developer Unit Magnetic Roller Drive Gear
Developer Unit Toner Auger Drive Gear
Developer Housing Repair Kit
Fuser Rollers
3 parts found
Fuser Roller
Fuser Roller
Fuser Roller
OPC Drums
2 parts found
OPC Drum Color
Fuser Films & Belts
3 parts found
Fuser Pressure Film Sleeve
Premium Quality
Pressure Film Sleeve
Fuser Heat Belt Unit Rebuild Slip Sheet
Chips & Resetters
1 part found

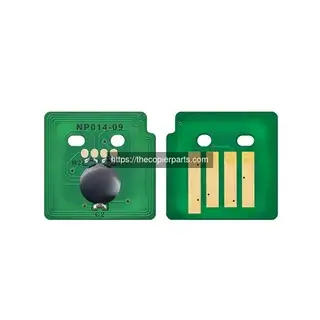

Toner Reset Chip
Reset: 006R01529/006R01530/006R01531/006R01532, 006R01525/006R01526/006R01527/006R01528, 006R01521/006R01522/006R01523/006R01524
Motors & Clutches
2 parts found
Feed Separation Friction Clutch
Feed Separation Friction Clutch Meatl Sleeve
Sleeve Only
General Mechanical Gears
12 parts found
Bypass Feed Motor Gear
For Repairing 127K38252
Tray 5 (Bypass) Lift Motor Gear
Direct Pipe Assembly Gear 1 Auger Idler Bevel Gear 22T37T
Fits any of the following assemblies: 052K13212, 052K13211, 052K13210, 049K27441, 049K06530, 068K24134, 068K24133, 068K24135, 068K24136, 068K24137, 052K96750, 052K96751, 052K96752
Direct Pipe Assembly Gear 2 21T24T
Fits any of the following assemblies: 052K13212, 052K13211, 052K13210, 049K27441, 049K06530, 068K24134, 068K24133, 068K24135, 068K24136, 068K24137, 052K96750, 052K96751, 052K96752
Direct Pipe Assembly Gear 3 15T27T
For Repairing: 052K13212, 049K27441, 049K06530, 068K24134, 068K24136, 068K24137
Direct Pipe Assembly Gear 4 Toner Waste Drive Shaft Gear 17T18T
Fits any of the following assemblies: 052K13212, 052K13211, 052K13210, 049K27441, 049K06530, 068K24134, 068K24133, 068K24135, 068K24136, 068K24137, 052K96750, 052K96751, 052K96752
Direct Pipe Assembly Gear 5 Toner Waste Drive Shaft Gear 20T
Fits any of the following assemblies: 052K13212, 052K13211, 052K13210, 049K27441, 049K06530, 068K24134, 068K24133, 068K24135, 068K24136, 068K24137, 052K96750, 052K96751, 052K96752
Direct Pipe Assembly Gear Set
Fits any of the following assemblies: 052K13212, 052K13211, 052K13210, 049K27441, 049K06530, 068K24134, 068K24133, 068K24135, 068K24136, 068K24137, 052K96750, 052K96751, 052K96752
Pre-Registration Drive Motor Gear
For Repairing: 015K64791, 15K64791, 127K39650
Bypass (Tray 5) Feed Idler Gear (25T)
Replace 007E78180
Transfer Rollers
3 parts found
2nd BTR roller(Bias Transfer Roll)
For Rebuilding: 059K78322 (59K78322), 059K78321 (59K78321), 059K78320 (59K78320), 059K55905 (59K55905)
2nd BTR roller(Bias Transfer Roll)
Aluminium Roller, For Repairing the following assemblies: 059K46251,59K68395, 059K68395, 59K68394, 059K68394, 59K68393, 059K68393, 59K68392, 059K68392, 59K68391, 059K68391, 59K78322, 059K78322, 59K78321, 059K78321, 59K78320, 059K78320, 59K79313, 059K79313, 59K79312, 059K79312, 59K79311, 059K79311, 59K79310, 059K79310
2nd BTR roller(Bias Transfer Roll)
Stainless Steel Roller, For Repairing the following assemblies: 059K46251,59K68395, 059K68395, 59K68394, 059K68394, 59K68393, 059K68393, 59K68392, 059K68392, 59K68391, 059K68391, 59K78322, 059K78322, 59K78321, 059K78321, 59K78320, 059K78320, 59K79313, 059K79313, 59K79312, 059K79312, 59K79311, 059K79311, 59K79310, 059K79310
Cleaning Rollers
1 part found
Developer Units
5 parts found
Black Developer Housing Unit
Empty Housing unit, Ships with NO Developer
Color Developer Housing Unit
Empty Housing unit, Ships with NO Developer
Black Developer Housing Unit
Empty Housing unit, Ships with NO Developer
Color Developer Housing Unit
Empty Housing unit, Ships with NO Developer
Color Developer Housing Unit
Mechanical Parts & Bearings
1 part foundTransfer Belts & Units
4 parts found
IBT Transfer Belt
IBT Transfer Belt
IBT Belt
IBT Belt
Lifespan: 500K pages @ 5% coverage.
Fuser Parts
3 parts found
Fuser Heat Belt Unit Rebuild Slip Sheet
High quality slip sheet, the Life span is about 80,000 pages at 5% paper coverage.
Developer Powder & Carrier
1 part found
Developer
Drum & Imaging Units
1 part found

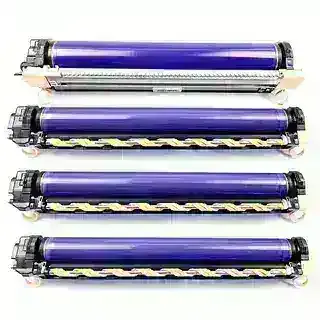

Drum Unit
With Fuji OPC drum core, the lifespan is about 20,000 pages
Frequently Asked Questions — Xerox Color 560 Parts
About the Xerox Color 560
The Xerox Color 560 is a high-performance digital production printer designed for graphic-intensive environments, small print shops, and corporate offices. Part of the successful 550/560/570 family, it is renowned for its benchmark image quality, versatile media handling, and professional finishing options.
Core Performance Specifications
- Print Speed: Up to 60 pages per minute (ppm) color and 65 ppm black and white.
- Resolution: 2400 x 2400 dpi for both print and copy, ensuring sharp text and vibrant images.
- Duty Cycle: Up to 300,000 pages per month for robust production needs.
- Toner Type: Xerox® EA (Emulsion Aggregation) Low Melt Toner for an offset-like finish.
- Standard Functions: Print, Copy, Scan, and Email.
Paper Handling and Media
- Standard Paper Capacity: 3,260 sheets.
- Maximum Paper Capacity: Up to 7,260 sheets with optional high-capacity feeders.
- Media Weights: Supports a wide range from 64 gsm up to 300 gsm (uncoated and coated).
- Maximum Sheet Size: Up to 13" x 19.2" (SRA3+).
- Duplexing: Automatic two-sided printing up to 176 gsm, with manual support up to 300 gsm.
Scanning and Copying Features
- Integrated Scanner: High-speed color scanning with support for multiple destinations.
- Advanced Finishing: Modular design allows for professional inline finishing, including stapling, hole-punching, booklet making, and various folding options.
- Media Versatility: Handles digital synthetics, polyesters, and heavy cover stocks with ease.
Connectivity and Security
- Print Servers: Offers multiple controller options, including the Xerox Integrated Color Server and external Fiery or Creo servers for advanced color management.
- Connectivity: Standard high-speed Ethernet for seamless integration into production workflows.
- Security Features: Standard encryption and secure data handling to protect sensitive production data.
Physical Dimensions:
- Base Dimensions: Approximately 54.8" H x 62" W x 31.6" D (139 x 157 x 80 cm).
- Weight: Roughly 604 lbs (274 kg) for the base unit.
