About Xerox Color C60 Replacement Parts
The Xerox Color C60 is a high-performance machine designed for demanding environments. Maintaining peak performance requires high-quality consumables and precision-engineered parts. All components listed below are verified against original OEM specifications to ensure 100% compatibility. Not sure which part number you need? Contact our technical team for a free consultation.
Charging Components
3 parts found
Charge Roller (PCR)
For rebuilding 013R00603, 013R00656, 013R00664, 013R00672
Charge Corotron Assembly Unit
Charge Corotron Grid
Repairs: 013R00650, 013R00604, 013R00630, 013R00631, 013R00632, 013R00633, 013R00634, 013R00635, 013R00636, 013R00637
Cleaning Blades
8 parts found
Black Drum Cleaning Blade
For Rebuilding: 013R00602, 013R00631, 013R00642, 013R00655, 013R00663, 013R00671. Original Quality
IBT Cleaning Blade
Original Quality
Color Drum Cleaning Blade
Repairs: 013R00603, 013R00632, 013R00649, 013R00643, 013R00643, 013R00656, 013R00664, 013R00672
2nd BTR Cleaning Blade
IBT Cleaning Blade
Black Drum Cleaning Blade
For Rebuilding: 013R00602, 013R00631, 013R00642, 013R00655, 013R00663, 013R00671. Original Quality
Color Drum Cleaning Blade
Repairs: 013R00603, 013R00632, 013R00649, 013R00643, 013R00643, 013R00656, 013R00664, 013R00672
2nd BTR Cleaning Blade
Paper Feed Components
4 parts found
Paper Feed Roller Kit
Set of 3 Rollers
Tray 5 Feed Nudger and Retard Roll Kit, Paper Feed Repair Kit trays 1-3
Bypass (Tray 5) Feed Idler Gear (25T)
Replace 007E78180
Paper Feed Roller Kit
Set of 3 Rollers
Developer Parts & Gears
10 parts found
Developer Gear Kit
Fits all of the following: Black DV Units - 604K24210, 604K24214, 604K24215, 604K24216, 604K24217, 604K24218, 604K24219, 604K50040, 604K50041, 604K50042, 604K50043, 604K75870, 604K85120, 604K86360, 604K86560 Color DV Units - 604K24220, 604K24224, 604K24225, 604K24226, 604K24227, 604K24228, 604K24229, 604K50030, 604K50031, 604K50032, 604K50033, 604K86350, 604K86550
Recovery Blade Seal Tape for Developer Unit
Cover for Developer Unit BK
Cover for Developer Unit Colors
Metal Developer Gear Kit
Copper Alloy Version, Lifespan longer than the original kit. Fits all of the following: Black DV Units - 604K24210, 604K24214, 604K24215, 604K24216, 604K24217, 604K24218, 604K24219, 604K50040, 604K50041, 604K50042, 604K50043, 604K75870, 604K85120, 604K86360, 604K86560 Color DV Units - 604K24220, 604K24224, 604K24225, 604K24226, 604K24227, 604K24228, 604K24229, 604K50030, 604K50031, 604K50032, 604K50033, 604K86350, 604K86550
Magnetic Developer Roller
Developer Unit Magnetic Roller Drive Gear
Developer Unit Toner Auger Drive Gear
Developer Housing Repair Kit
Fuser Rollers
1 part found
Fuser Roller
OPC Drums
2 parts found
OPC Drum Color
Fuser Films & Belts
3 parts found
Fuser Pressure Film Sleeve
Premium Quality
Pressure Film Sleeve
Fuser Heat Belt Unit Rebuild Slip Sheet
Motors & Clutches
2 parts found
Feed Separation Friction Clutch
Feed Separation Friction Clutch Meatl Sleeve
Sleeve Only
General Mechanical Gears
11 parts found
Bypass Feed Motor Gear
For Repairing 127K38252
Tray 5 (Bypass) Lift Motor Gear
Direct Pipe Assembly Gear 1 Auger Idler Bevel Gear 22T37T
Fits any of the following assemblies: 052K13212, 052K13211, 052K13210, 049K27441, 049K06530, 068K24134, 068K24133, 068K24135, 068K24136, 068K24137, 052K96750, 052K96751, 052K96752
Direct Pipe Assembly Gear 2 21T24T
Fits any of the following assemblies: 052K13212, 052K13211, 052K13210, 049K27441, 049K06530, 068K24134, 068K24133, 068K24135, 068K24136, 068K24137, 052K96750, 052K96751, 052K96752
Direct Pipe Assembly Gear 3 15T27T
For Repairing: 052K13212, 049K27441, 049K06530, 068K24134, 068K24136, 068K24137
Direct Pipe Assembly Gear 4 Toner Waste Drive Shaft Gear 17T18T
Fits any of the following assemblies: 052K13212, 052K13211, 052K13210, 049K27441, 049K06530, 068K24134, 068K24133, 068K24135, 068K24136, 068K24137, 052K96750, 052K96751, 052K96752
Direct Pipe Assembly Gear 5 Toner Waste Drive Shaft Gear 20T
Fits any of the following assemblies: 052K13212, 052K13211, 052K13210, 049K27441, 049K06530, 068K24134, 068K24133, 068K24135, 068K24136, 068K24137, 052K96750, 052K96751, 052K96752
Direct Pipe Assembly Gear Set
Fits any of the following assemblies: 052K13212, 052K13211, 052K13210, 049K27441, 049K06530, 068K24134, 068K24133, 068K24135, 068K24136, 068K24137, 052K96750, 052K96751, 052K96752
Pre-Registration Drive Motor Gear
For Repairing: 015K64791, 15K64791, 127K39650
Bypass (Tray 5) Feed Idler Gear (25T)
Replace 007E78180
Transfer Rollers
3 parts found
2nd BTR roller(Bias Transfer Roll)
For Rebuilding: 059K78322 (59K78322), 059K78321 (59K78321), 059K78320 (59K78320), 059K55905 (59K55905)
2nd BTR roller(Bias Transfer Roll)
Aluminium Roller, For Repairing the following assemblies: 059K46251,59K68395, 059K68395, 59K68394, 059K68394, 59K68393, 059K68393, 59K68392, 059K68392, 59K68391, 059K68391, 59K78322, 059K78322, 59K78321, 059K78321, 59K78320, 059K78320, 59K79313, 059K79313, 59K79312, 059K79312, 59K79311, 059K79311, 59K79310, 059K79310
2nd BTR roller(Bias Transfer Roll)
Stainless Steel Roller, For Repairing the following assemblies: 059K46251,59K68395, 059K68395, 59K68394, 059K68394, 59K68393, 059K68393, 59K68392, 059K68392, 59K68391, 059K68391, 59K78322, 059K78322, 59K78321, 059K78321, 59K78320, 059K78320, 59K79313, 059K79313, 59K79312, 059K79312, 59K79311, 059K79311, 59K79310, 059K79310
Toner Cartridges
1 part found

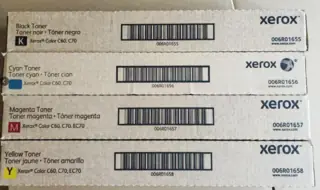

Toner Cartridge
Developer Units
4 parts found
Black Developer Housing Unit
Empty Housing unit, Ships with NO Developer
Color Developer Housing Unit
Empty Housing unit, Ships with NO Developer
Black Developer Housing Unit
Empty Housing unit, Ships with NO Developer
Color Developer Housing Unit
Empty Housing unit, Ships with NO Developer
Mechanical Parts & Bearings
1 part foundFuser Parts
3 parts found
Fuser Heat Belt Unit Rebuild Slip Sheet
High quality slip sheet, the Life span is about 80,000 pages at 5% paper coverage.
Developer Powder & Carrier
1 part found
Developer
Transfer Belts & Units
1 part foundIBT Belt
Frequently Asked Questions — Xerox Color C60 Parts
About the Xerox Color C60
The Xerox Color C60 is a high-performance multifunction digital production printer designed for graphics-intensive environments, short-run production, and professional office settings. It offers superior image quality, extensive media versatility, and professional-grade finishing, making it an ideal solution for businesses looking to produce high-impact color documents in-house.
Core Performance Specifications
- Print Speed: Up to 60 pages per minute (ppm) color and 65 ppm black and white.
- Resolution: 2400 x 2400 dpi for both print and copy for exceptional detail and clarity.
- Monthly Volume: Recommended up to 110,000 pages, with a duty cycle of 300,000 pages per month.
- Toner Type: Xerox® Emulsion Aggregation (EA) Low-Melt Toner for a smooth, offset-like finish.
- Standard Functions: Copy, Print, and Scan to Email/Network.
Paper Handling and Media
- Standard Paper Capacity: 3,260 sheets.
- Maximum Paper Capacity: Up to 7,260 sheets with optional feeders.
- Media Weights: Supports a broad range from 60 gsm to 300 gsm (uncoated and coated).
- Maximum Sheet Size: Up to 13" x 19.2" (SRA3+).
- Media Versatility: Handles specialty media including polyester synthetic labels, window clings, magnets, and transfer papers.
Scanning and Copying Features
- Scanner Speed: Up to 200 images per minute (ipm) with single-pass duplex scanning.
- SIQA (Simple Image Quality Adjustment): Automated tools for precise image-to-media alignment and density uniformity.
- Advanced Finishing: Modular design supports professional inline finishing options such as stapling, hole-punching, folding, and booklet making.
- Optional Functions: Support for Fax and additional high-capacity feeding modules.
Connectivity and Security
- Print Servers: Options include the Xerox Integrated Color Server or external EFI Fiery servers for advanced color management.
- User Interface: Large 10.4-inch color touch screen for intuitive operation.
- Security Features: Standard security protocols for secure data handling and network protection.
Physical Dimensions:
- Base Dimensions: Approximately 54.8" H x 62" W x 31.6" D (139 x 157 x 80 cm).
- Weight: Roughly 604 lbs (274 kg) for the base unit.
