About Xerox Digital Color Press 700i Replacement Parts
The Xerox Digital Color Press 700i is a high-performance machine designed for demanding environments. Maintaining peak performance requires high-quality consumables and precision-engineered parts. All components listed below are verified against original OEM specifications to ensure 100% compatibility. Not sure which part number you need? Contact our technical team for a free consultation.
Charging Components
3 parts found
Charge Roller (PCR)
For rebuilding 013R00603, 013R00656, 013R00664, 013R00672
Charge Corotron Assembly Unit
Charge Corotron Grid
Repairs: 013R00650, 013R00604, 013R00630, 013R00631, 013R00632, 013R00633, 013R00634, 013R00635, 013R00636, 013R00637
Cleaning Blades
7 parts found
Black Drum Cleaning Blade
For Rebuilding: 013R00602, 013R00631, 013R00642, 013R00655, 013R00663, 013R00671. Original Quality
Color Drum Cleaning Blade
Repairs: 013R00603, 013R00632, 013R00649, 013R00643, 013R00643, 013R00656, 013R00664, 013R00672
2nd BTR Cleaning Blade
IBT Cleaning Blade
Black Drum Cleaning Blade
For Rebuilding: 013R00602, 013R00631, 013R00642, 013R00655, 013R00663, 013R00671. Original Quality
Color Drum Cleaning Blade
Repairs: 013R00603, 013R00632, 013R00649, 013R00643, 013R00643, 013R00656, 013R00664, 013R00672
2nd BTR Cleaning Blade
Paper Feed Components
6 parts found
Paper Feed Roller Kit
Set of 3 Rollers
Tray 5 Feed Nudger and Retard Roll Kit, Paper Feed Repair Kit trays 1-3
Bypass (Tray 5) Feed Idler Gear (25T)
Replace 007E78180
Paper Feed Roller Kit
Set of 3 Rollers
Bypass (Tray 5) Feed Idler Gear (25T)
Replace 007E78180

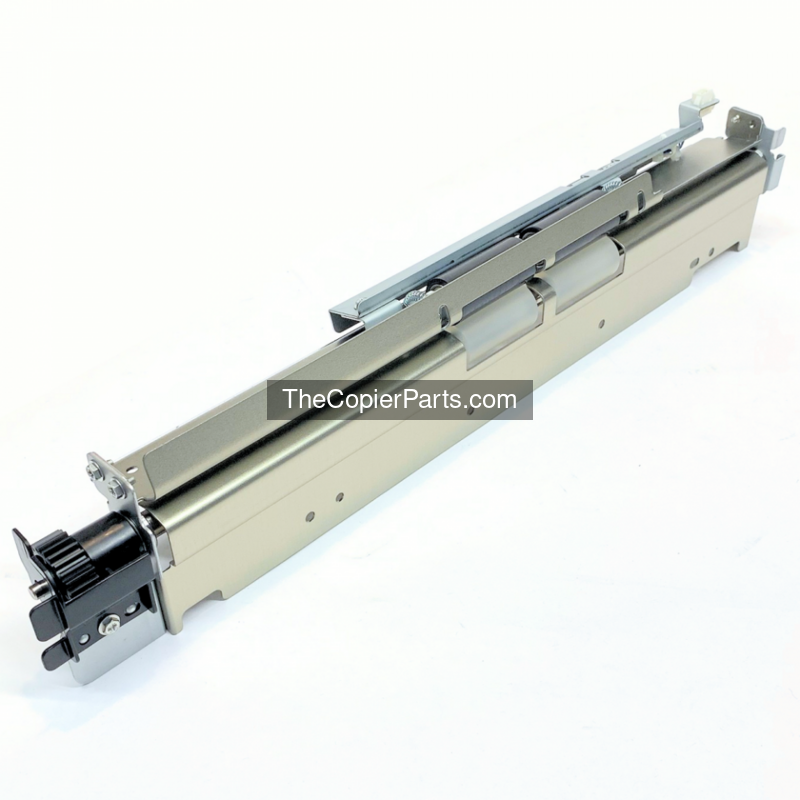

Tray Bypass MSI Chute Assembly
Developer Parts & Gears
11 parts found
Developer Gear Kit
Fits all of the following: Black DV Units - 604K24210, 604K24214, 604K24215, 604K24216, 604K24217, 604K24218, 604K24219, 604K50040, 604K50041, 604K50042, 604K50043, 604K75870, 604K85120, 604K86360, 604K86560 Color DV Units - 604K24220, 604K24224, 604K24225, 604K24226, 604K24227, 604K24228, 604K24229, 604K50030, 604K50031, 604K50032, 604K50033, 604K86350, 604K86550
Recovery Blade Seal Tape for Developer Unit

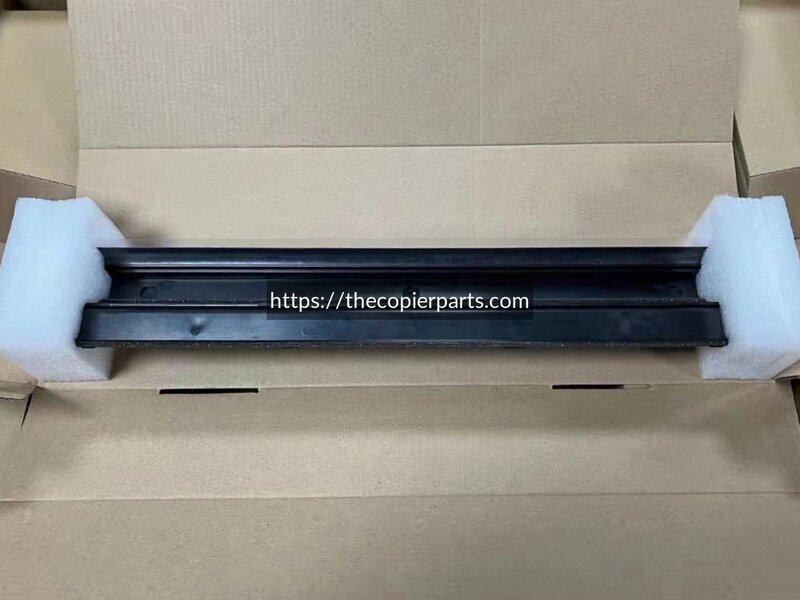

Cover for Developer Unit BK
Cover for Developer Unit Colors
Metal Developer Gear Kit
Copper Alloy Version, Lifespan longer than the original kit. Fits all of the following: Black DV Units - 604K24210, 604K24214, 604K24215, 604K24216, 604K24217, 604K24218, 604K24219, 604K50040, 604K50041, 604K50042, 604K50043, 604K75870, 604K85120, 604K86360, 604K86560 Color DV Units - 604K24220, 604K24224, 604K24225, 604K24226, 604K24227, 604K24228, 604K24229, 604K50030, 604K50031, 604K50032, 604K50033, 604K86350, 604K86550
Magnetic Developer Roller
Developer Unit Magnetic Roller Drive Gear
Developer Unit Toner Auger Drive Gear
Developer Housing Repair Kit
OPC Drums
2 parts found
OPC Drum Color
Chips & Resetters
2 parts found
Toner Cartridge Reset Chip
Reset these toner cartridges: 006R01379/006R01380/006R01381/006R01382 006R01375/006R01376/006R01377/006R01378 CT201243/CT201244/CT201245/CT201246 006R01383/006R01384/006R01385/006R01386
Drum Cartridge Reset CRUM Chips
Fuser Films & Belts
3 parts found
Fuser Pressure Film Sleeve
Premium Quality
Pressure Film Sleeve
Fuser Heat Belt Unit Rebuild Slip Sheet
General Mechanical Gears
15 parts found
Pre-Registration Transport Drive Motor Gear
Repairs: 127K51970, 007K98040
Bypass Feed Motor Gear
For Repairing 127K38252
Paper Tray Lift Feed Motor Gear
Repairs 127K37681, 655N380, 655N00380,
Tray 5 (Bypass) Lift Motor Gear
Bypass Idler Gear-23T
Repairs: 006K23315, 006K23314, 006K23313, 006K23312, 006K23311, 006K23310
Duplex Drive Gear Kit
Repairs 54K35936, 054K35936
Direct Pipe Assembly Gear 1 Auger Idler Bevel Gear 22T37T
Fits any of the following assemblies: 052K13212, 052K13211, 052K13210, 049K27441, 049K06530, 068K24134, 068K24133, 068K24135, 068K24136, 068K24137, 052K96750, 052K96751, 052K96752
Direct Pipe Assembly Gear 2 21T24T
Fits any of the following assemblies: 052K13212, 052K13211, 052K13210, 049K27441, 049K06530, 068K24134, 068K24133, 068K24135, 068K24136, 068K24137, 052K96750, 052K96751, 052K96752
Direct Pipe Assembly Gear 3 15T27T
For Repairing: 052K13212, 049K27441, 049K06530, 068K24134, 068K24136, 068K24137
Direct Pipe Assembly Gear 4 Toner Waste Drive Shaft Gear 17T18T
Fits any of the following assemblies: 052K13212, 052K13211, 052K13210, 049K27441, 049K06530, 068K24134, 068K24133, 068K24135, 068K24136, 068K24137, 052K96750, 052K96751, 052K96752
Direct Pipe Assembly Gear 5 Toner Waste Drive Shaft Gear 20T
Fits any of the following assemblies: 052K13212, 052K13211, 052K13210, 049K27441, 049K06530, 068K24134, 068K24133, 068K24135, 068K24136, 068K24137, 052K96750, 052K96751, 052K96752
Direct Pipe Assembly Gear Set
Fits any of the following assemblies: 052K13212, 052K13211, 052K13210, 049K27441, 049K06530, 068K24134, 068K24133, 068K24135, 068K24136, 068K24137, 052K96750, 052K96751, 052K96752
Registration Gear Kit
Kit Includes - 2 gears: a 25/38T double idler gear and a 47T mating gear For Repairing the following Modules: 059K56701, 059K56702 059K56703, 059K56704, 059K56705, 059K56706, 059K56709, 059K79341, 059K79342, 059K79343
Registration Drive 47T Mating Gear
For Repairing the following Registration Transport Assemblies: 059K56701, 059K56702 059K56703, 059K56704, 059K56705, 059K56706, 059K56709, 059K79341, 059K79342, 059K79343, 641S00723
2nd BTR Drive Gear
Motors & Clutches
2 parts found
Feed Separation Friction Clutch
Feed Separation Friction Clutch Meatl Sleeve
Sleeve Only
Transfer Rollers
3 parts found
2nd BTR roller(Bias Transfer Roll)
For Rebuilding: 059K78322 (59K78322), 059K78321 (59K78321), 059K78320 (59K78320), 059K55905 (59K55905)
2nd BTR roller(Bias Transfer Roll)
Aluminium Roller, For Repairing the following assemblies: 059K46251,59K68395, 059K68395, 59K68394, 059K68394, 59K68393, 059K68393, 59K68392, 059K68392, 59K68391, 059K68391, 59K78322, 059K78322, 59K78321, 059K78321, 59K78320, 059K78320, 59K79313, 059K79313, 59K79312, 059K79312, 59K79311, 059K79311, 59K79310, 059K79310
2nd BTR roller(Bias Transfer Roll)
Stainless Steel Roller, For Repairing the following assemblies: 059K46251,59K68395, 059K68395, 59K68394, 059K68394, 59K68393, 059K68393, 59K68392, 059K68392, 59K68391, 059K68391, 59K78322, 059K78322, 59K78321, 059K78321, 59K78320, 059K78320, 59K79313, 059K79313, 59K79312, 059K79312, 59K79311, 059K79311, 59K79310, 059K79310
Maintenance Supplies
1 part found
Wax bar for 2ND BTR(Bias Transfer Roll) Assembly
Fuser Rollers
2 parts found
Fuser Roller
Fuser Roller
Cleaning Rollers
1 part found
Toner Cartridges
1 part foundToner Cartridge
Developer Units
4 parts found
Black Developer Housing Unit
Empty Housing unit, Ships with NO Developer
Color Developer Housing Unit
Empty Housing unit, Ships with NO Developer
Black Developer Housing Unit
Empty Housing unit, Ships with NO Developer
Color Developer Housing Unit
Empty Housing unit, Ships with NO Developer
Mechanical Parts & Bearings
1 part foundBall Bearing
Fuser Parts
3 parts found
Fuser Pressure Pad
Fuser Heat Belt Unit Rebuild Slip Sheet
High quality slip sheet, the Life span is about 80,000 pages at 5% paper coverage.
Developer Powder & Carrier
1 part foundDeveloper
Transfer Belts & Units
2 parts foundIBT Belt
IBT Belt
Lifespan: 500K pages @ 5% coverage.
Frequently Asked Questions — Xerox Digital Color Press 700i Parts
About the Xerox Digital Color Press 700i
The Xerox Digital Color Press 700i is an enhanced version of the 700 series, offering production-grade performance and high-quality color output. Designed for high-volume environments, it provides excellent media versatility and consistent image quality, making it a staple in print shops and corporate production departments.
Core Performance Specifications
- Print Speed: Up to 70 pages per minute (ppm) color and black and white.
- Resolution: 2400 x 2400 dpi for both print and copy for superior detail.
- Monthly Duty Cycle: Up to 300,000 pages per month.
- Toner Type: Emulsion Aggregation (EA) Low Melt Toner for consistent, high-quality results.
- Standard Functions: Print, Copy, and Scan.
Paper Handling and Media
- Standard Paper Capacity: 1,900 sheets across three trays plus a bypass tray.
- Maximum Paper Capacity: Up to 5,900 sheets with optional high-capacity feeders.
- Media Weights: Supports 64 gsm to 300 gsm.
- Maximum Sheet Size: Up to 13" x 19.2" (330 x 488 mm).
- Auto-Duplexing: Supports automatic two-sided printing up to 300 gsm.
Scanning and Copying Features
- Integrated Scanner: High-speed duplex scanning with advanced document feeder.
- Front-to-Back Registration: High-precision registration within +/- 1.0 mm.
- Image Quality: Automated color calibration and density control for consistent results across long runs.
- Advanced Finishing: Compatible with a wide range of modules including booklet makers, stackers, and hole-punchers.
Connectivity and Security
- Print Servers: Supports EFI Fiery (Integrated or External) and Xerox FreeFlow print servers.
- Connectivity: High-speed network integration via standard Ethernet.
- Security Features: Built-in security features for data protection and secure job handling.
Physical Dimensions:
- Base Dimensions: Approximately 54" H x 68" W x 31" D (137 x 173 x 79 cm).
- Weight: Roughly 592 lbs (268.5 kg) for the base unit.
