About Xerox DocuColor 242 Replacement Parts
The Xerox DocuColor 242 is a high-performance machine designed for demanding environments. Maintaining peak performance requires high-quality consumables and precision-engineered parts. All components listed below are verified against original OEM specifications to ensure 100% compatibility. Not sure which part number you need? Contact our technical team for a free consultation.
Charging Components
3 parts found
Charge Roller (PCR)
For rebuilding 013R00603, 013R00656, 013R00664, 013R00672
Charge Corotron Assembly Unit
Charge Corotron Grid
Repairs: 013R00650, 013R00604, 013R00630, 013R00631, 013R00632, 013R00633, 013R00634, 013R00635, 013R00636, 013R00637
Cleaning Blades
8 parts found
Black Drum Cleaning Blade
For Rebuilding: 013R00602, 013R00631, 013R00642, 013R00655, 013R00663, 013R00671. Original Quality
IBT Cleaning Blade
Original Quality
Color Drum Cleaning Blade
Repairs: 013R00603, 013R00632, 013R00649, 013R00643, 013R00643, 013R00656, 013R00664, 013R00672
2nd BTR Cleaning Blade
IBT Cleaning Blade
Black Drum Cleaning Blade
For Rebuilding: 013R00602, 013R00631, 013R00642, 013R00655, 013R00663, 013R00671. Original Quality
Color Drum Cleaning Blade
Repairs: 013R00603, 013R00632, 013R00649, 013R00643, 013R00643, 013R00656, 013R00664, 013R00672
2nd BTR Cleaning Blade
Paper Feed Components
8 parts found
Paper Feed Kit
Includes: 1 each Pickup, Feed & Separation Rollers
DADF Nudger Roll Feed Roll kit
Paper Feed Roller Kit
Set of 3 Rollers
DADF Retard Roll
Tray 5 Feed Nudger and Retard Roll Kit, Paper Feed Repair Kit trays 1-3
Bypass (Tray 5) Feed Idler Gear (25T)
Replace 007E78180
Paper Feed Roller Kit
Set of 3 Rollers
Cleaning Rollers
1 part found
Cleaning Foam Roller
Developer Parts & Gears
5 parts found
Developer Gear Kit
Fits all of the following: Black DV Units - 604K24210, 604K24214, 604K24215, 604K24216, 604K24217, 604K24218, 604K24219, 604K50040, 604K50041, 604K50042, 604K50043, 604K75870, 604K85120, 604K86360, 604K86560 Color DV Units - 604K24220, 604K24224, 604K24225, 604K24226, 604K24227, 604K24228, 604K24229, 604K50030, 604K50031, 604K50032, 604K50033, 604K86350, 604K86550
Metal Developer Gear Kit
Copper Alloy Version, Lifespan longer than the original kit. Fits all of the following: Black DV Units - 604K24210, 604K24214, 604K24215, 604K24216, 604K24217, 604K24218, 604K24219, 604K50040, 604K50041, 604K50042, 604K50043, 604K75870, 604K85120, 604K86360, 604K86560 Color DV Units - 604K24220, 604K24224, 604K24225, 604K24226, 604K24227, 604K24228, 604K24229, 604K50030, 604K50031, 604K50032, 604K50033, 604K86350, 604K86550
Developer Unit Magnetic Roller Drive Gear
Developer Unit Toner Auger Drive Gear
Fuser Rollers
2 parts found
Fuser Roller
Fuser Roller
OPC Drums
3 parts found
OPC Drum Color
OPC Drum Color
Fuser Films & Belts
3 parts found
Fuser Pressure Film Sleeve
Premium Quality Fix 064K93436, 064K93437, 064K93438, 064K94051 Lower Fuser Pressure Film Assembly
Pressure Film Sleeve
Fix 064K93436, 064K93437, 064K93438, 064K94051 Lower Fuser Pressure Film Assembly
Fuser Heat Belt Unit Rebuild Slip Sheet
Motors & Clutches
2 parts found
Feed Separation Friction Clutch
Feed Separation Friction Clutch Meatl Sleeve
Sleeve Only
General Mechanical Gears
10 parts found
Bypass Feed Motor Gear
For Repairing 127K38252
Tray 5 (Bypass) Lift Motor Gear
Direct Pipe Assembly Gear 1 Auger Idler Bevel Gear 22T37T
Fits any of the following assemblies: 052K13212, 052K13211, 052K13210, 049K27441, 049K06530, 068K24134, 068K24133, 068K24135, 068K24136, 068K24137, 052K96750, 052K96751, 052K96752
Direct Pipe Assembly Gear 2 21T24T
Fits any of the following assemblies: 052K13212, 052K13211, 052K13210, 049K27441, 049K06530, 068K24134, 068K24133, 068K24135, 068K24136, 068K24137, 052K96750, 052K96751, 052K96752
Direct Pipe Assembly Gear 3 15T27T
For Repairing: 052K13212, 049K27441, 049K06530, 068K24134, 068K24136, 068K24137
Direct Pipe Assembly Gear 4 Toner Waste Drive Shaft Gear 17T18T
Fits any of the following assemblies: 052K13212, 052K13211, 052K13210, 049K27441, 049K06530, 068K24134, 068K24133, 068K24135, 068K24136, 068K24137, 052K96750, 052K96751, 052K96752
Direct Pipe Assembly Gear 5 Toner Waste Drive Shaft Gear 20T
Fits any of the following assemblies: 052K13212, 052K13211, 052K13210, 049K27441, 049K06530, 068K24134, 068K24133, 068K24135, 068K24136, 068K24137, 052K96750, 052K96751, 052K96752
Direct Pipe Assembly Gear Set
Fits any of the following assemblies: 052K13212, 052K13211, 052K13210, 049K27441, 049K06530, 068K24134, 068K24133, 068K24135, 068K24136, 068K24137, 052K96750, 052K96751, 052K96752
Bypass (Tray 5) Feed Idler Gear (25T)
Replace 007E78180
Bypass Idler Gear-23T
Repairs: 006K23315, 006K23314, 006K23313, 006K23312, 006K23311, 006K23310
Transfer Rollers
1 part found
2nd BTR roller(Bias Transfer Roll)
Premium Quality, Even better than the original one.
Display Panels & Touch Screens
1 part found

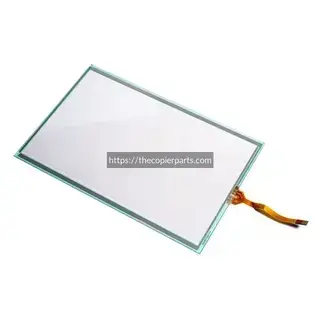

Touch Screen
Size: 180 x 275 mm
Transfer Belts & Units
3 parts found
IBT Transfer Belt
IBT Transfer Belt
IBT Belt
Fuser Parts
3 parts found
Fuser Pressure Pad
Fuser Heat Belt Unit Rebuild Slip Sheet
High quality slip sheet, the Life span is about 80,000 pages at 5% paper coverage.
Developer Powder & Carrier
1 part found
Developer
Frequently Asked Questions — Xerox DocuColor 242 Parts
About the Xerox DocuColor 242
The Xerox DocuColor 242 is a high-performance digital color printer and copier designed for graphic arts, production environments, and busy offices. It provides professional-grade color quality, robust media handling, and high-speed output, making it an ideal choice for businesses that require consistent and vibrant color results for their marketing and production needs.
Core Performance Specifications
- Print Speed: Up to 40 pages per minute (ppm) for color and 55 ppm for black and white.
- Resolution: 2400 x 2400 dpi for sharp text and stunning image detail.
- Monthly Duty Cycle: Up to 200,000 pages per month.
- First Copy Out Time: 10.7 seconds for color and 4.3 seconds for black and white.
- Controller Options: Standard integrated EFI Fiery controller with options for external servers.
Paper Handling and Media
- Standard Paper Capacity: 3,260 sheets via five trays.
- Maximum Paper Capacity: Up to 5,260 sheets with an optional high-capacity feeder.
- Media Weights: Supports 64 gsm to 300 gsm (18 lb. bond to 110 lb. cover).
- Maximum Sheet Size: Up to 13" x 19" (SRA3).
- Auto-Duplexing: Supports automatic two-sided printing on a variety of media.
Scanning and Copying Features
- Integrated Scanner: High-speed scanning for efficient document management.
- Scan Resolution: High-fidelity scanning to support graphics-intensive workflows.
- Image Quality: Advanced calibration tools for consistent color across long production runs.
- Advanced Finishing: Modular design supports various finishing options including stapling, hole-punching, and booklet makers.
Connectivity and Security
- Print Servers: Compatible with advanced external print servers for specialized color management.
- Connectivity: Standard high-speed Ethernet for seamless network integration.
- Security Features: Built-in security protocols for data encryption and secure document handling in enterprise environments.
Physical Dimensions:
- Base Dimensions: Approximately 54" H x 65.1" W x 36.2" D (137 x 165 x 92 cm).
- Weight: Roughly 585 lbs (265 kg) for the base unit.
