About Xerox DocuColor 7000 Replacement Parts
The Xerox DocuColor 7000 is a high-performance machine designed for demanding environments. Maintaining peak performance requires high-quality consumables and precision-engineered parts. All components listed below are verified against original OEM specifications to ensure 100% compatibility. Not sure which part number you need? Contact our technical team for a free consultation.
General Mechanical Gears
1 part found

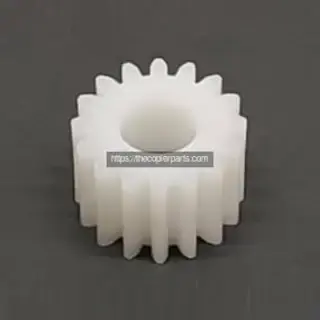

Paper Tray Lift Feed Motor Gear
Repairs 127K37681, 655N380, 655N00380,
Transfer Rollers
1 part found

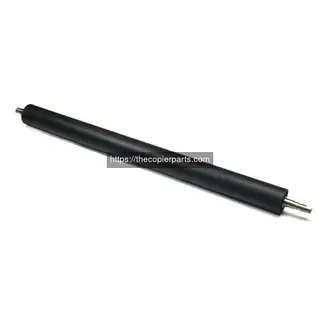

2nd BTR roller(Bias Transfer Roll)
For Rebuilding: 059K78322 (59K78322), 059K78321 (59K78321), 059K78320 (59K78320), 059K55905 (59K55905)
Fuser Cleaning Webs
1 part found
Web Cleaning Roller
Fuser Rollers

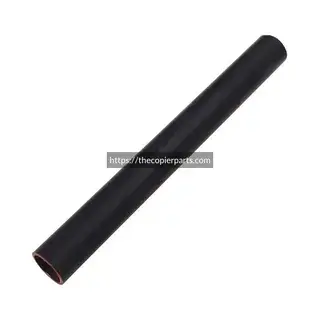

2 parts foundUpper Fuser Heat Roller
Lower Pressure Roller
Frequently Asked Questions — Xerox DocuColor 7000 Parts
About the Xerox DocuColor 7000
The Xerox DocuColor 7000 Digital Press is a high-volume production color system designed for commercial print shops and professional office environments requiring exceptional image quality and robust reliability. Built on the same high-performance platform as the DocuColor 8000, it delivers a consistent 70 ppm output with a stunning 2400 x 2400 dpi resolution. Utilizing advanced 32-laser VCSEL technology, the 7000 provides high-definition color depth and sharp fine-line detail. Its versatile media handling and professional finishing options make it an ideal solution for producing high-impact marketing materials, brochures, and short-run production jobs at scale.
Core Performance Specifications
- Print Speed: Up to 70 pages per minute (ppm) for Letter/A4.
- Resolution: True 2400 x 2400 dpi (1-bit) for high-definition color output.
- Monthly Duty Cycle: Up to 350,000 pages per month.
- Imaging Technology: 32-beam laser VCSEL for precise, high-speed imaging.
- Advanced Engine: "Load-while-run" toner and paper capabilities to minimize downtime.
Paper Handling and Media
- Standard Paper Capacity: 4,000 sheets (Two 2,000-sheet internal trays).
- Maximum Paper Capacity: Up to 8,000 sheets with optional Secondary Feed Module.
- Media Weights: Supports from 60 gsm up to 300 gsm (16 lb. Bond to 110 lb. Cover).
- Maximum Sheet Size: Up to 12.6" x 19.2" (320 x 488 mm).
- Auto-Duplexing: Standard automatic two-sided printing on all supported media.
Scanning and Copying Features
- Integrated Scanner: Optional high-speed production scanner for digital document distribution.
- Front-to-Back Registration: High-precision registration within +/- 1.0 mm.
- Advanced Finishing: Modular support for high-capacity stackers, booklet makers, stapling, and hole punchers.
- Variable Gloss: Ability to manage gloss levels for specific application requirements.
Connectivity and Security
- Digital Front Ends (DFE): Choice of Xerox FreeFlow®, EX7000 (EFI Fiery®), or CX7000 (Creo®) Print Servers.
- Connectivity: Standard high-speed network integration via the chosen DFE.
- Security Features: Secure job management, data encryption, and network security protocols typical for production environments.
Physical Dimensions:
- Dimensions (Base Engine): Approximately 100" (W) x 44" (D) x 56" (H) (2,540 x 1,105 x 1,413 mm).
- Weight: Approximately 2,200 lbs (1,000 kg).
