About Xerox WorkCentre 7328 Replacement Parts
The Xerox WorkCentre 7328 is a high-performance machine designed for demanding environments. Maintaining peak performance requires high-quality consumables and precision-engineered parts. All components listed below are verified against original OEM specifications to ensure 100% compatibility. Not sure which part number you need? Contact our technical team for a free consultation.
Paper Feed Components
1 part found
Paper Feed Kit
Includes: 1 each Pickup, Feed & Separation Rollers
Electronic Components
1 part found

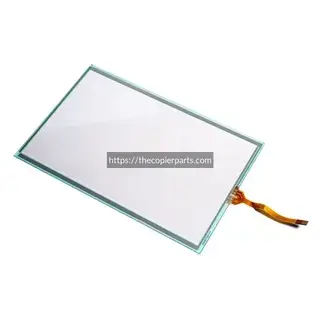

Touch Screen
Size: 18.4 x 14.2 cm
Frequently Asked Questions — Xerox WorkCentre 7328 Parts
About the Xerox WorkCentre 7328
The Xerox WorkCentre 7328 is a color multifunction printer that delivers high-quality output and advanced performance for modern office environments. It is part of the WorkCentre 7300 series, featuring the Xerox Extensible Interface Platform® (EIP) for enhanced integration with business workflows and custom applications.
Core Performance Specifications
- Print/Copy Speed: Up to 28 ppm black-and-white; 26 ppm color.
- Resolution: 1200 x 1200 dpi for sharp text and vivid color representation.
- Monthly Duty Cycle: Up to 80,000 images per month.
- First Page Out Time: As fast as 4.8 seconds black-and-white; 7.2 seconds color.
- Memory/Hard Drive: 1 GB standard memory and a 40 GB Hard Drive.
Paper Handling and Media
- Standard Paper Capacity: 1,140 sheets (two 520-sheet trays and a 100-sheet bypass tray).
- Maximum Paper Capacity: Up to 3,140 sheets with optional high-capacity feeders.
- Media Sizes: Supports up to 11" x 17" (A3/Tabloid) and 12" x 18" (SRA3).
- Media Weights: Supports stocks up to 220 gsm (80 lb. cover) from the bypass tray.
- Duplexing: Standard automatic two-sided printing and copying.
Scanning and Copying Features
- Integrated Scanner: High-speed color and monochrome scanning.
- Scan Destinations: Scan to email, mailbox, network folder (SMB/FTP), and optional scan to PC Desktop.
- Copy Features: Includes ID Card Copy, sample set, and advanced image quality controls for color balancing.
- Finishing Options: Modular finishing solutions available for stapling, hole punching, and booklet making.
Connectivity and Security
- Connectivity: 10/100Base-TX Ethernet and USB 2.0.
- Security: Standard features include Image Overwrite, Hard Drive Data Encryption, and user-level authentication.
- Workflow: Features the Xerox Extensible Interface Platform® (EIP) for personalized user interfaces and custom apps.
Physical Dimensions:
- Base Dimensions: Approximately 26" W x 27.5" D x 45" H (660 x 699 x 1143 mm).
- Weight: Roughly 328 lbs (149 kg) for the base unit.
