About Xerox WorkCentre M118 Replacement Parts
The Xerox WorkCentre M118 is a high-performance machine designed for demanding environments. Maintaining peak performance requires high-quality consumables and precision-engineered parts. All components listed below are verified against original OEM specifications to ensure 100% compatibility. Not sure which part number you need? Contact our technical team for a free consultation.
Paper Feed Components
4 parts found

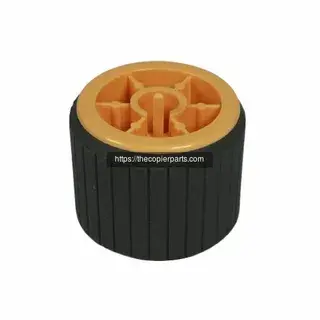

Feed Roller

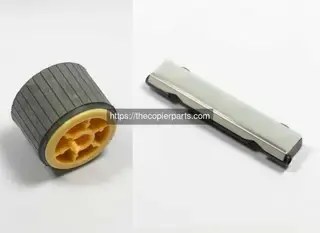

Picker Roller Separation Pad Set
Includes: 059K32773/059K32772 & 019K09420
Feed Roller
Paper Size Sensor
Frequently Asked Questions — Xerox WorkCentre M118 Parts
About the Xerox WorkCentre M118
The Xerox WorkCentre M118 is a robust monochrome multifunction system that offers heavy-duty performance for small to medium-sized workgroups. Built on a platform known for its extreme durability, it delivers high-quality printing, copying, and scanning with an impressive monthly duty cycle that ensures reliable operation even under heavy use.
Core Performance Specifications
- Print Speed: Up to 18 pages per minute (ppm) for A4; 10 ppm for A3.
- Resolution: 600 x 600 dpi for professional-grade document clarity.
- Memory: 96 MB standard; expandable up to 288 MB for complex document processing.
- First Copy Out Time: 7.4 seconds, minimizing user wait times.
- Duty Cycle: Up to 50,000 pages per month, indicating exceptional mechanical reliability.
Paper Handling and Media
- Standard Paper Capacity: 350 sheets (250-sheet tray and 100-sheet bypass tray).
- Maximum Paper Capacity: Up to 1,850 sheets with optional high-capacity feeders.
- Media Sizes: Supports documents up to A3 (11" x 17").
- Media Weights: Standard trays support 60-90 gsm; bypass tray supports heavier media up to 216 gsm.
- Document Feeder: Optional 50-sheet Duplexing Automatic Document Feeder (DADF).
Scanning and Copying Features
- Integrated Scanning: Supports monochrome scanning for document digitization.
- Copy Features: Includes standard reduction and enlargement (25% to 400%), electronic collation, and ID card copy.
- Duplexing: Optional automatic two-sided copying/printing module.
- Finishing Options: Supports optional stapling and offsetting for finished document sets.
Connectivity and Security
- Connectivity: Standard USB 2.0, IEEE 1284 Parallel, and 10/100 Base-TX Ethernet.
- Network Management: Fully network-ready with support for SNMP, HTTP, and multiple networking protocols.
- Security: Standard features include password-protected printing and internal accounting to track device usage.
Physical Dimensions:
- Base Dimensions: 23.4" W x 20.2" D x 18.2" H (59.5 x 51.3 x 46.2 cm).
- Weight: Approximately 71.4 lbs (32.4 kg) for the base copier unit.
